An Electrolyte Of Innovative Technology Way Ahead Of Conventional Sulphuric Acid

ElectroGel 2000 (ET 2000) is the only environmentally friendly electrolyte available in the market today to replace conventional sulphuric acid electrolytes. With less than 10% sulphuric acid content, it has been tested and proven to substantially reduce (by more than 65%) the emission of toxic gases into the environment by lead acid batteries. ElectroGel 2000 has won several gold awards in international invention exhibitions since 1992.

ElectroGel 2000 is non-toxic, non-flammable, non-explosive and safe for storage. Incorporating a patented formulation of silicate gel electrolyte with a far superior starting power over that of conventional acid electrolyte.

The silicate gel polymer allows transfer of electrons at high speed within its complex molecular structure, significantly lowering the internal resistance of the battery. Aided by the presence of catalysts, the regeneration of sulphuric acid ions at a very rapid rate during discharging process enables the achievement of immense starting power despite the very low content of sulphuric acid.

The innovative technology culminates in an ultra efficient electrolyte with the following benefits:

• Higher discharge of current and power output
  • Low internal resistance
  • Fast voltage recovery
• Longer Service Life
  • No sulphation
  • Lower operating temperature
  • Faster self recovery ensure battery operates at relatively higher charge state
  • The formation of a thin film of gel on battery plates giving protection against vibration and erosion
• Environmentally friendly
  • Reduces substantially the amount of toxic gases emitted into the environment
  • Easy disposal
• Lower maintenance
  • Less frequent topping up of distilled water required.
  • No requirement to monitor S. G. level.
• Faster charging
  • Reduces charging time by as much as 40%
• Long Shelf Life
  • No sulphation
  • Very low self discharge of 0.5% of capacity per month at 20°C ambient temperature.
• Operational at extreme low temperatures at -40°C

With less than 10% sulphuric acid content, ElectroGel 2000 even outperforms conventional electrolyte containing 38% (1.28 S.G.) sulphuric acid. With its ability to produce very high instantaneous starting current, ElectroGel 2000 filled batteries are able to deliver greater starting power than any conventional lead acid batteries of same capacity.

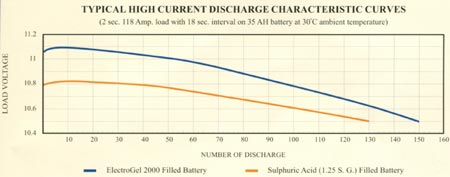

TYPICAL HIGH CURRENT DISCHARGE CHARACTERISTIC CURVES
(2 sec. 118 Amp. load with 18 sec. interval on 35 AH battery at 30°C ambient temperature)

ElectroGel 2000 is formulated to optimise discharge of a battery's power at its 'useful zone'. The regeneration of sulphuric acid ions would have slowed down, causing the load voltage to drop rapidly as it approaches 1.75V per cell. This unique protective feature minimises strain on battery and prolongs battery life.

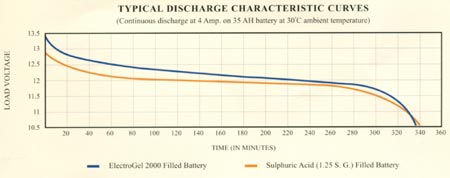

TYPICAL DISCHARGE CHARACTERISTIC CURVES
(Continuous discharge at 4 Amp. on 35AH battery at 30°C ambient temperature)

Batteries filled with ElectroGel 2000 achieve reduction in charging time required by as much as 40%. This translates directly into substantial cost savings in terms of charging cost and reduced down time.

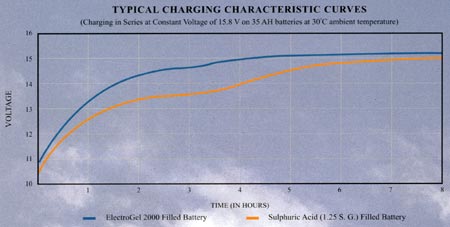

TYPICAL CHARGING CHARACTERISTIC CURVES
(Charging in Series at Constant Voltage of 15.8V on 35AH batteries at 30°C ambient temperature)

ElectroGel 2000 is suitable for all types of lead acid batteries for a myriad of applications...

Please [click here] to download the MATERIAL SAFETY DATA SHEET in Microsoft Word format.
